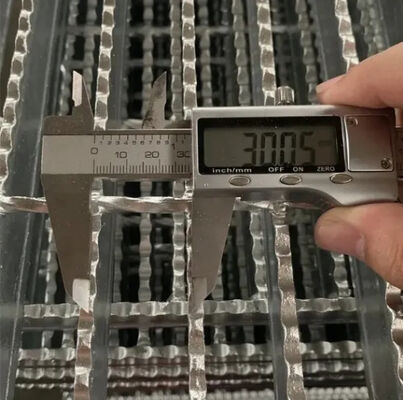

40X5mm Serrated Press-Locked Steel Grating with Hot DIP Galvanizing for Anti-Slip Applications

Press-Locked Grating features cross bars and bearing bars that are notched and pressed together through a high-pressure manufacturing process. This creates a bi-directional flush surface that ensures a firm, rigid connection while providing an aesthetically appealing finish suitable for architectural applications. Available from stock in two bearing bar heights, in plain or corrosion-resistant galvanized steel, or aluminum. Custom bar heights, bar spacings, and materials are available by special order.

• Bearing bar size (mm): 25 x 3; 25 x 5; 30 x 3; 30 x 5; 32 x 3; 32 x 5; 35 x 3; 35 x 5...
• Bearing bar pitch (mm): 20; 30; 34; 40; 50; 60...
• Cross bar pitch (mm): 50; 100; 38...

All gratings can be customized according to your specific requirements.

• China: YB/T4001-1998
• USA: ANSI/NAAMM (MBG531-88)
• UK: BS4592-1987
• Australia: AS1657-1985
• Japan: JJS

• Water Treatment: Repair walkways, trench cover boards, large containers, cleaning devices, blocking grates, water tanks, biochemical water treatment pool pendants, ventilation windows, stairs, cooling tower operation table paving surfaces
• Chemical Plants: Stairway boards, operating platforms, guardrails, double floors, trench cover boards, filter grates
• Industrial: Offshore oil platforms
• Textile Mills: Replacement for metal grilles, wooden platforms, and cement ground covers near dye tanks, floors, and valves
• Power Plants: Chemical water workshop trench cover plates, waste pools
• Marine Food Processing: Slip-resistant surfaces and other harsh environments, ship applications
• Transportation: Platforms, ship decks, walkways, stairs
• Beverage Industry: Staircase floor boards, cost-effective replacement for stainless steel, loaded floors
