Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing

Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing
Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing

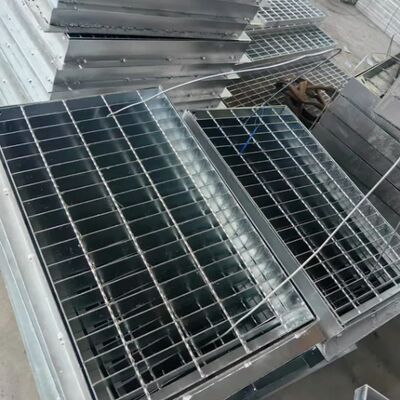

Imagem Grande :  Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing

Detalhes do produto:
Marca: Gnee
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2 unidades
Detalhes da embalagem: Fixar com cinto de metal Embalagem com palete, envoltório externo com filme plástico à prova d'á
Tempo de entrega: Enviado em 20 dias após o pagamento
Habilidade da fonte: 300.000 metros quadrados/metros quadrados por mês
Contato

Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing

descrição
Destacar:

Hot-Dip Galvanized Steel Grating

,

Heavy Duty Bar Grating

,

Customizable Size Metal Grating

Heavy Duty Walking Platform Steel Gratings for Driveway Load-Bearing
Steel grating is manufactured from high-quality carbon steel or stainless steel, featuring flat steel arranged crosswise at specific intervals with cross bars, welded into a grid pattern with square openings. The exterior is typically hot-dip galvanized for superior corrosion resistance.
Steel grating offers excellent ventilation, light transmission, anti-slip properties, strong load-bearing capacity, heat dissipation, easy cleaning, and simple installation.
Surface Treatment Options
  • Hot-dip Galvanizing: Applied after hemming completion, providing high corrosion resistance and significantly extending service life
  • Painting: Custom spraying, painting, or dipping available according to specific customer requirements
Installation Methods
  • Welding: For permanent installations requiring no disassembly. Each corner requires a fillet weld with minimum 20mm length and 3mm height
  • Installation Clamps: Preserves zinc coating and allows easy disassembly. Minimum 4 clamps per plate, with additional clamps for longer plates
Product Specifications
Material Carbon Steel, Stainless Steel, Aluminum
Size Customized Size
Color Silver
Surface Treatment Hot-dip Galvanized, Painted, Powder Coating
Application Platforms, Stairs, Drainage Ditch, Protective Fence
Type Plain Grating, Serrated Grating, I-Grating
Bearing Bar Type Plain, Serrated, I-Type Bar
Technical Dimensions
Bearing Bar (H x T) 20x3/20x5/25x3/25x5/30x3/30x5/32x5/40x5/50x5/etc.
Bearing Bar Pitch 20/30/40/50/60/80/100mm
Cross Bar 6/8/10mm
Cross Bar Pitch 50/100mm
Custom specifications available according to your specific requirements.
Applications
Steel gratings are renowned for their high strength and durability, serving critical roles across multiple industries:
  • Municipal Engineering: Bridge guardrails and drainage ditch covers
  • Industrial Facilities: Factory platforms and petrochemical plant equipment supports
  • Architectural Decoration: Stair treads and light wells
Widely used in industrial platforms, stair treads, and other applications requiring load-bearing capacity, anti-slip properties, drainage functionality, and economic efficiency.

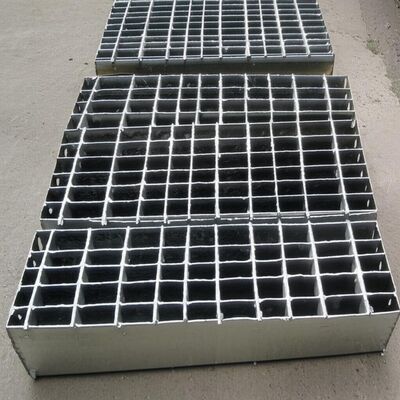

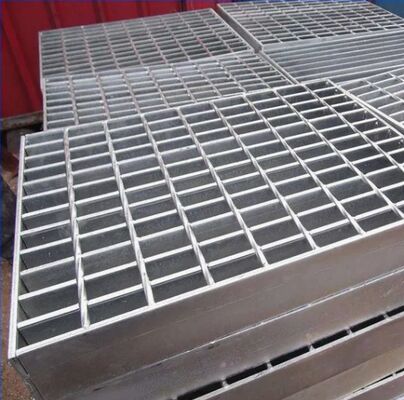

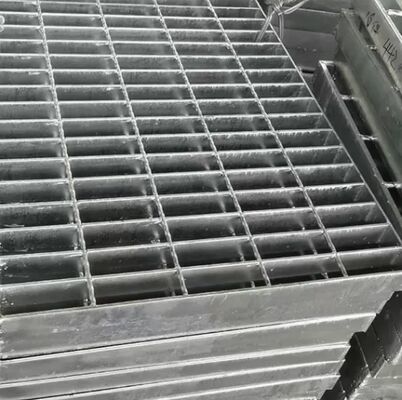

Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing 0 Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing 1 Heavy Duty Hot-Dip Galvanized Steel Grating Bar Grating with Customizable Size for Driveway Load-Bearing 2

etiqueta:

heavy duty bar grating,

metal drain grates,

industrial floor grates
