Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications

Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications
Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications

Imagem Grande :  Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications

Detalhes do produto:
Marca: Gnee
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2 unidades
Detalhes da embalagem: Fixar com cinto de metal Embalagem com palete, envoltório externo com filme plástico à prova d'á
Tempo de entrega: Enviado em 20 dias após o pagamento
Habilidade da fonte: 300.000 metros quadrados/metros quadrados por mês
Contato

Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications

descrição
Destacar:

Hot-Dip Galvanized Steel Grating

,

Serrated Type Steel Bar Grating

,

Heavy Duty Metal Grating

Heavy Duty Anti-Slip Serrated Steel Deck Grating
Steel grating is manufactured through a precision welding process that combines bearing bars and cross bars arranged in a flat-steel weft pattern. The production involves high-pressure resistance welding followed by cutting, notching, opening, and overlocking processes to create finished products that meet specific customer requirements.
Our steel gratings feature exceptional strength-to-weight ratio, lightweight construction, superior load-bearing capacity, and easy installation. The hot-dip galvanized coating provides outstanding corrosion resistance for long-lasting performance.
Product Advantages
Hot-dip galvanized steel grating offers exceptional cost-effectiveness and is widely used in construction projects for paved drainage systems on both new and existing roadbeds. The specialized hot-dip galvanizing treatment creates stable chemical and physical properties that resist corrosion and oxidation from environmental exposure and microorganisms, significantly enhancing trench load capacity.
Surface Treatment Processes
Stainless Steel Finishing Options
  • Pickling Passivation: Immersing the stainless steel grating in specialized solution to achieve a uniform silver-white matte surface finish
  • Electrolytic Polishing: Processing in heated electrolytic solution at 75°C for 1-3 minutes to produce a bright, polished stainless steel surface
Technical Specifications
Materials Q195, Q235, Q235B / 304, 316 Stainless Steel
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm
I-bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3
US Standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x1/4", 1-1/4"x1/4", 1-1/2"x1/4", 1"x1/8", 1-1/4"x1/8", 1-1/2"x1/8"
Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch 38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild Steel & Low Carbon Steel
Surface Treatment Black, Self Color, Hot Dip Galvanized, Painted, Spray Coating
Grating Style Plain/Smooth, Serrated/Teeth, I-bar, Serrated I-bar
Grating Standards China: YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS

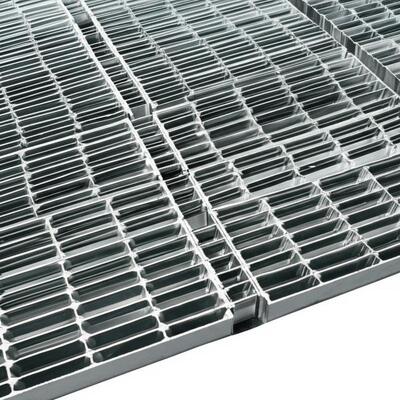

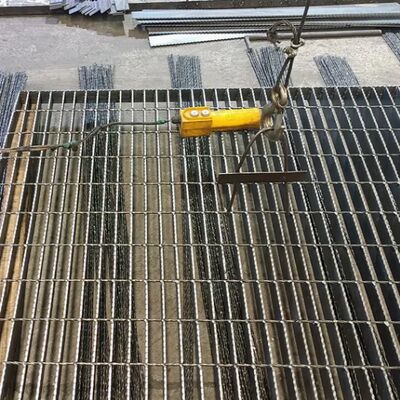

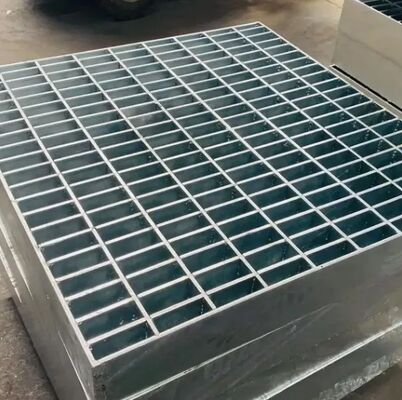

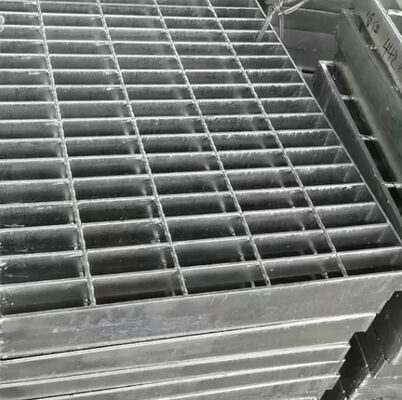

Product Images
Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications 0 Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications 1 Heavy Duty Hot-Dip Galvanized Serrated Type Steel Grating for Outdoor Drainage and Eco-Friendly Applications 2

etiqueta:

heavy duty bar grating,

metal drain grates,

industrial floor grates
