Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use

Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use
Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use

Imagem Grande :  Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use

Detalhes do produto:
Marca: Gnee
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2 unidades
Detalhes da embalagem: Fixar com cinto de metal Embalagem com palete, envoltório externo com filme plástico à prova d'á
Tempo de entrega: Enviado em 20 dias após o pagamento
Habilidade da fonte: 300.000 metros quadrados/metros quadrados por mês
Contato

Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use

descrição
Destacar:

Hot Dip Galvanized Steel Grating

,

Customizable Shapes Metal Grating

,

High Load-Bearing Bar Grating

OEM and ODM High Quality Industrial Warehouse Carbon Hot DIP Galvanized Compound Metal Steel Bar Grating
Special steel grating, also known as irregular shape steel grating for specialized applications, is manufactured in various configurations including square, round, fan-shaped, and ladder designs. Additional styles include shutter steel grid, diamond hole plug steel grid, and fish scale hole steel grid.
Custom-shaped steel grating consists of irregular patterns formed into sectors, circles, angle-deficient sections, and trapezoids. These components are precisely cut, drilled, welded, and finished to meet specific customer requirements. Available in carbon steel with hot-dip galvanized surface treatment for oxidation resistance, or stainless steel construction.
Key Features
  • Custom assembly in round, trapezoid, semicircle, and fan-shaped configurations
  • Robust welded grid construction provides high load-bearing capacity with lightweight structure for easy hoisting
  • Durable design with attractive appearance
  • Custom fabrication available according to user specifications with design and installation services
Performance Benefits
Steel grating offers excellent ventilation, lighting transmission, heat dissipation, anti-slip properties, and explosion-proof characteristics, making it ideal for industrial warehouse applications.
Standard Specifications (mm)
Specification Table 1
NO. Bearing Bar Spacing Cross Bar Spacing 20x3 25x3 32x3 40x3 20x5 25x5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
1 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
Specification Table 2
NO. Bearing Bar Spacing Cross Bar Spacing 32x5 40x5 45x5 50x5 55x5 60x5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
1 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50

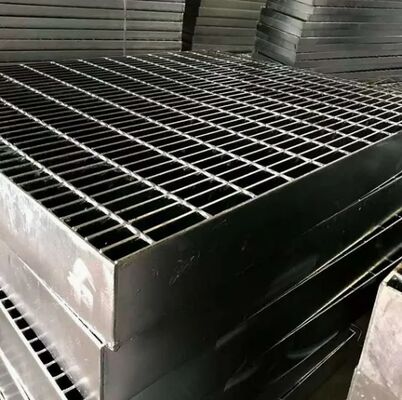

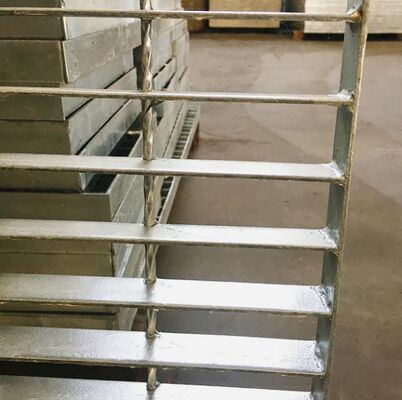

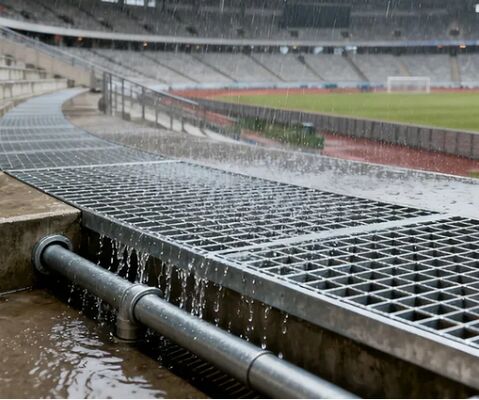

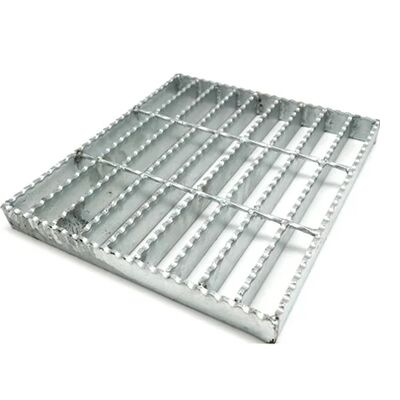

Product Images
Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use 0 Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use 1 Hot Dip Galvanized Steel Grating with Customizable Shapes and High Load-Bearing Capacity for Industrial Use 2
