HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate
HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate

Imagem Grande :  HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate

Detalhes do produto:
Lugar de origem: China
Marca: GNEE
Certificação: ISO9001,SGS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 10 metros quadrados
Preço: negotiable
Detalhes da embalagem: Embalagem digna do mar, ou seja, bandeja de madeira ou aço com tira de aço, etc.
Tempo de entrega: 5-9 dias úteis
Termos de pagamento: Negociável
Habilidade da fonte: 100 toneladas/semana
Contato

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate

descrição
Destacar:

galvanized steel grating 25x5mm

,

stamped steel grate 4 inch

,

serrated steel grating heavy duty

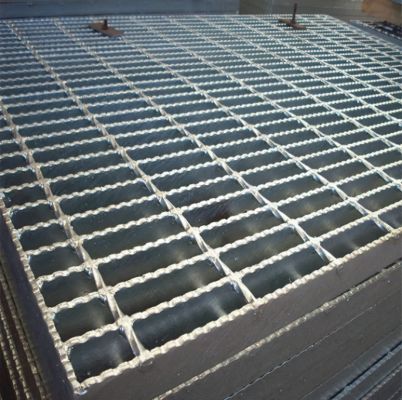

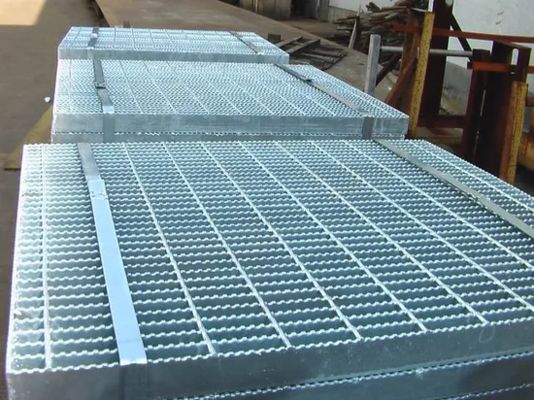

HDG Grating Factory SS Steel Serrated Grating
Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is the go-to choice for applications demanding high load-bearing prowess or aesthetic appeal. Produced from a specified size of serrated steel, this grating undergoes a series of meticulous processes—slotting, inserting, welding, and finishing—culminating in a product capable of handling substantial loads. It stands as a trusted solution for heavy-duty industrial platforms, offering a significant safety margin. Surface treatments are versatile, including galvanizing, painting, or dipping, tailored to your needs.
HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate 0
Specifications
Product Name Customized Anti-slip Serrated Steel Grating
Material Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316 etc.
Surface treatment Hot dipped galvanized, polished or untreated
Grate size As customer's request
Bearing bar width x thickness 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm
Bearing bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm.
US standard: 1"x3/16", 11/4"x3/16", 11/2"x3/16", 1"x 1/4", 11/4"×1/4", 11/2"x 1/4" etc.
Cross bar pitch 38, 50, 76, 100, 101.6mm or custom
Technical Specifications
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar (width x thickness)
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar (width x thickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 4 Inch Galvanized Stamped Steel Grate 1

etiqueta:

heavy duty bar grating,

metal drain grates,

industrial floor grates
