Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating
Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

Imagem Grande :  Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

Detalhes do produto:
Lugar de origem: China
Marca: GNEE
Certificação: ISO9001,SGS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 10 medidores quadrados
Preço: negotiable
Detalhes da embalagem: Embalagens para uso marítimo, ou seja, bandejas de madeira ou de aço com tiras de aço, etc.
Tempo de entrega: 5-9 dias úteis
Termos de pagamento: L/c, t/t
Habilidade da fonte: 100 toneladas/semana
Contato

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

descrição
Destacar:

heavy duty steel floor grating

,

hot dip galvanized steel grate

,

industrial steel bar grating

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating
Hot Dipped Galvanized Heavy Duty Steel Grating 70mm x 6mm Bearing Bar
Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.
Materials & Finishes
Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.
Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating 0
Table of Spacings
15-w-4 Bearing Bars at 15/16" O.C. Cross Bars at 4" O.C. 15-w-2 Bearing Bars at 15/16" O.C. Cross Bars at 2" O.C.
19-w-4 Bearing Bars at 1-3/16" O.C. Cross Bars at 4" O.C. 19-w-2 Bearing Bars at 1-3/16" O.C. Cross Bars at 2" O.C.
22-w-4 Bearing Bars at 1-3/8" O.C. Cross Bars at 4" O.C. 22-w-2 Bearing Bars at 1-3/8" O.C. Cross Bars at 2" O.C.
30-w-4 Bearing Bars at 1-7/8" O.C. Cross Bars at 4" O.C. 30-w-2 Bearing Bars at 1-7/8" O.C. Cross Bars at 2" O.C.
38-w-4 Bearing Bars at 2-3/8" O.C. Cross Bars at 4" O.C. 38-w-2 Bearing Bars at 2-3/8" O.C. Cross Bars at 2" O.C.
Banding
Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns.

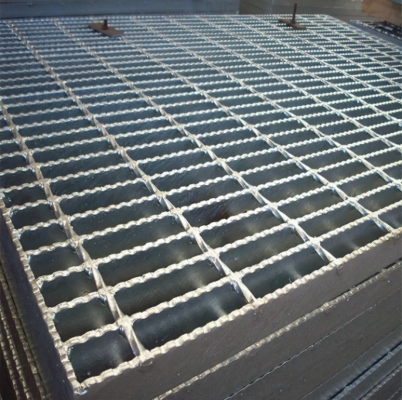

Serrated Surface
Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.
How to Specify Heavy Duty Bar Grating
  • Select type of grating
    • "W" for Welded Steel Grating
    • "WS" for Welded Stainless Steel Grating
  • Select bar spacing from table above
  • Select bearing bar size from Load Tables
  • Specify Plain or Serrated surface
  • Specify banding and any additional trim required
  • Specify finish
    • Bare steel (no finish)
    • Painted (red, black, silver, other)
    • Hot Dip Galvanized (per ASTM A-123)
    • Other
  • Specify fasteners (if required) - Banding / Layout / Fasteners
Maximum Traffic Conditions
Traffic Type Wheel Load (Ibs)
(1/2 axle load +30% Impact)		 Load Distribution
Parallel With Axle		 Perpendicular to Axle
H-25 Truck Traffic
40000lb.Axle Load Dual Wheels
Modified AASHTD H-25		 26,000 2(C)+25" 25"
H-20 Truck Traffic
32000lb.Axle Load Dual Wheels
Modified AASHTD H-20		 20,800 2(C)+20" 20"
H-15 Truck Traffic
24000lb.Axle Load Single Wheels
Modified AASHTD H-15		 15,600 2(C)+15" 15"
Automobile
6322 Ib Vehicle 3578 Ib.Load
60%Drive Axle Load		 3,861 2(C)+9" 9"
5Ton Forklift
10000 Ib.Cap.LiftTruck 14000Ib.Vehicle
24,000 Ib.Table Load 85% Drive Axle Load		 13,480 2(C)+11" 11"
3Ton Forklift
6,000 Ib.Cap.Lift Truck 9000Ib.Vehicle
15800 Ib.Table Load 85% Drive Axle Load		 8.730 2(C)+7" 7"
1Ton Forklift
2,000 Ib.Cap.Lift Truck 4200Ib.Vehicle
6200 Ib.Table Load 85% Drive Axle Load		 3,425 2(C)+4" 4"
Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating 1 Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating 2
