Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways

Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways
Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways

Imagem Grande :  Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways

Detalhes do produto:
Lugar de origem: CHINA
Marca: GNEE
Certificação: SGS
Condições de Pagamento e Envio:
Preço: negotiable
Detalhes da embalagem: Embalagem digna do mar, ou seja, bandeja de madeira ou aço com tira de aço, etc.
Tempo de entrega: 5-9 dias úteis
Termos de pagamento: Negociável
Contato

Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways

descrição
Destacar:

ASTM A36 carbon steel grating

,

galvanized welded floor grate

,

serrated walkway steel grating

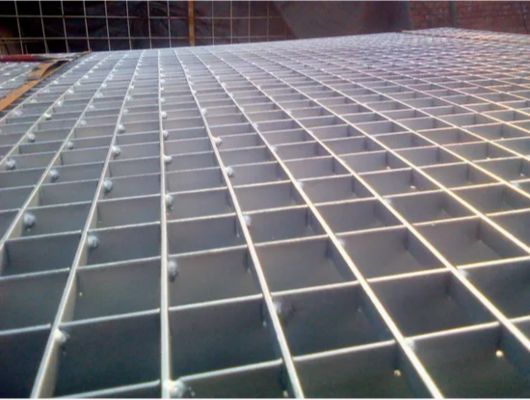

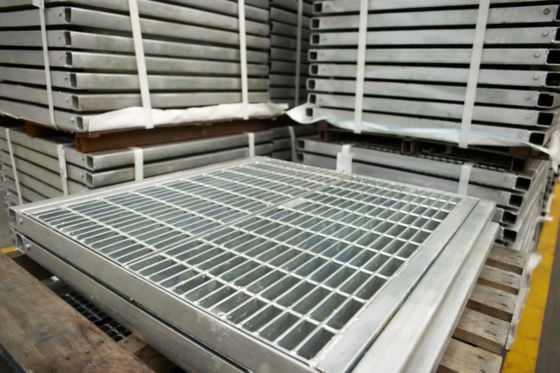

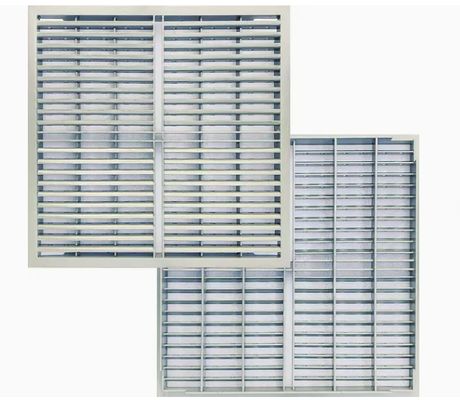

Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways
Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options.
Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways 0
Product Features
  • Available in welded, press-locked, swage-locked, and riveted types
  • Offered in both smooth and serrated surface designs
  • Versatile applications including stair treads, walkways, platforms, and heavy-duty constructions
  • Welded bar grating comes in smooth and serrated options with enhanced skid resistance
  • Press-locked grating is strong and durable for industrial applications
  • Swage-locked grating available in rectangular, T, and I bar configurations
Technical Specifications
Material Carbon Steel, Stainless Steel, Aluminum
Surface treatment Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type Plain(Flat) bar, Serrated bar, I-bar, etc.
Common Specifications
Bearing bar pitch (mm) Cross bar pitch (mm) Bearing bar size
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways 1 Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways 2 Heavy-Duty ASTM A36 Carbon Steel Galvanized Bar Grating Serrated Welded Floor Grate for Walkways 3
